Construction Specification

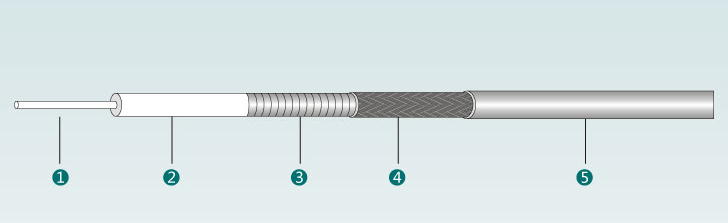

  Item  Material  Diameter(mm)
  1. Inner Conductor   Silver Plated Copper   1.90
  2. Dielectric   LD PTFE   5.60
  3. Outer Conductor 1   Spiral Wrapped Silver Plated Copper tape   --
  4. Outer Conductor 2   Silver Plated Copper Tape Braid   6.20
  6. Jacket   FEP   7.90

Electrical Characteristics

  Capacitance(pF/m)   Nom.87
  Impedance(ohm)   50
  Velocity of Propagation(%)   76
  Time Delay(ns/m)   4.4
  Max Operating Frequency(MHz)   18
  Voltage Withstanding(kVrms 60Hz/1 min.)   3.8
  Shielding Effectiveness(dB)   90

Mechanical and Environmental Characteristic

  Operating Temp.(℃)   -55 to +165
  Min Bending Radius(mm)   24
  Min Bending Radius Repeated(mm)   40
  RoHS   Compliant

Attenuation & Average Power@ 20℃ at Sea Level

  Frequency(GHz)  Attenuation(dB/m)  Power(CW)
  1.0   0.173   1700
  2.0   0.249   1200
  3.0   0.309   930
  5.0   0.408   720
  8.0   0.429   590
  10.0   0.600   490
  12.0   0.665   440
  18.0   0.841   375
