Low loss Phase Stable Cable
Low loss Phase Stable Cable

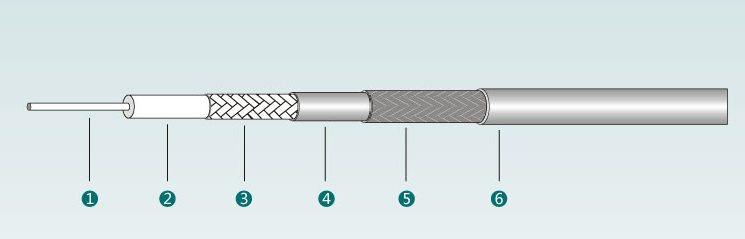

Construction Specification
| Item | Material | Diameter(mm) |
|---|---|---|
| 1. Inner Conductor | Silver Plated Copper | 2.06 |
| 2. Dielectric | LD PTFE | 6.05 |
| 3. Outer Conductor 1 | Silver Plated Copper Tape Braid | 6.25 |
| 4. Outer Conductor 2 | Aluminum foil | -- |
| 5. Outer Conductor 3 | Silver Plated Copper Tape Braid | 6.95 |
| 6. Jacket | FEP | 7.75 |
Electrical Characteristics
| Capacitance(pF/m) | Nom.85.3 |
| Impedance(ohm) | 50 |
| Velocity of Propagation(%) | 78 |
| Time Delay(ns/m) | 4.3 |
| Max Operating Frequency(MHz) | 18 |
| Voltage Withstanding(kVrms 60Hz/1 min.) | 5.0 |
Mechanical and Environmental Characteristic
| Operating Temp.(℃) | -55 to +200 |
| Min Bending Radius(mm) | 38.1 |
| Min Bending Radius Repeated(mm) | 72 |
| RoHS | Compliant |
Attenuation & Average Power@ 20℃ at Sea Level
| Frequency(GHz) | Attenuation(dB/m) | Power(CW) |
|---|---|---|
| 0.2 | 0.08 | 5050 |
| 0.4 | 0.12 | 3500 |
| 0.6 | 0.15 | 2800 |
| 0.8 | 0.17 | 2400 |
| 1.0 | 0.19 | 2220 |
| 2.0 | 0.28 | 1540 |
| 5.0 | 0.45 | 940 |
| 10.0 | 0.65 | 645 |
| 12.0 | 0.72 | 580 |
| 18.0 | 0.90 | 460 |
