Low loss Phase Stable Cable
Low loss Phase Stable Cable

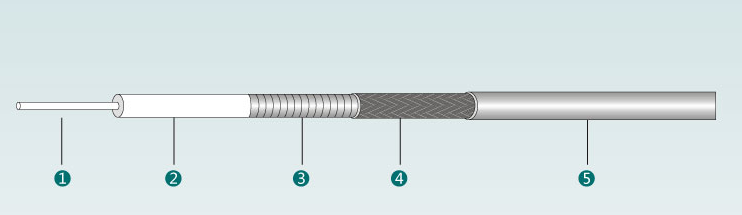

Construction Specification
| Item | Material | Diameter(mm) |
|---|---|---|
| 1. Inner Conductor | Silver Plated Copper | 0.81 |
| 2. Dielectric | LD PTFE | 2.40 |
| 3. Outer Conductor 1 | Spiral Wrapped Silver Plated Copper tape | 3.00 |
| 4. Outer Conductor 2 | Silver Plated Copper Tape Braid | -- |
| 6. Jacket | FEP | 3.60 |
Electrical Characteristics
| Capacitance(pF/m) | Nom.87 |
| Impedance(ohm) | 50 |
| Velocity of Propagation(%) | 76 |
| Time Delay(ns/m) | 4.4 |
| Max Operating Frequency(MHz) | 50 |
| Voltage Withstanding(kVrms 60Hz/1 min.) | 1.2 |
| Shielding Effectiveness(dB) | 90 |
Mechanical and Environmental Characteristic
| Operating Temp.(℃) | -55 to +165 |
| Min Bending Radius(mm) | 11 |
| Min Bending Radius Repeated(mm) | 20 |
| RoHS | Compliant |
Attenuation & Average Power@ 20℃ at Sea Level
| Frequency(GHz) | Attenuation(dB/m) | Power(CW) |
|---|---|---|
| 1.0 | 0.470 | 280 |
| 2.0 | 0.664 | 200 |
| 3.0 | 0.814 | 165 |
| 5.0 | 1.050 | 125 |
| 8.0 | 1.330 | 100 |
| 10.0 | 1.490 | 88 |
| 12.0 | 1.630 | 80 |
| 18.0 | 2.000 | 65 |
