Low loss Phase Stable Cable
Low loss Phase Stable Cable

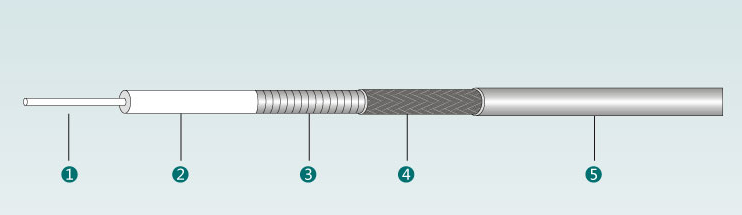

Construction Specification
| Item | Material | Diameter(mm) |
|---|---|---|
| 1. Inner Conductor | Silver Plated Copper | 0.51 |
| 2. Dielectric | LD PTFE | 1.45 |
| 3. Outer Conductor 1 | Spiral Wrapped Silver Plated Copper tape | -- |
| 4. Outer Conductor 2 | Silver Plated Copper Tape Braid | 1.95 |
| 6. Jacket | FEP | 2.20 |
Electrical Characteristics
| Capacitance(pF/m) | Nom.83 |
| Impedance(ohm) | 50 |
| Velocity of Propagation(%) | 81 |
| Time Delay(ns/m) | 4.1 |
| Max Operating Frequency(MHz) | 50 |
| Voltage Withstanding(kVrms 60Hz/1 min.) | 1000 |
| Shielding Effectiveness(dB) | 90 |
Mechanical and Environmental Characteristic
| Operating Temp.(℃) | -55 to +200 |
| Min Bending Radius(mm) | 15 |
| Min Bending Radius Repeated(mm) | 25 |
| RoHS | Compliant |
Attenuation & Average Power@ 20℃ at Sea Level
| Frequency(GHz) | Attenuation(dB/m) | Power(CW) |
|---|---|---|
| 2.0 | 0.90 | 210 |
| 4.0 | 1.29 | 145 |
| 6.0 | 1.60 | 115 |
| 8.0 | 1.85 | 95 |
| 10.0 | 2.08 | 85 |
| 12.0 | 2.30 | 76 |
| 16.0 | 2.70 | 60 |
| 18.0 | 2.87 | 58 |
