Construction Specification

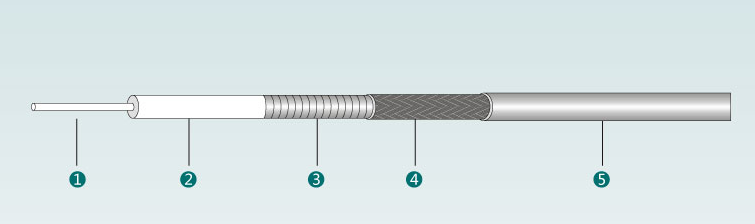

  Item  Material  Diameter(mm)
  1. Inner Conductor   Silver Plated Copper   2.26
  2. Dielectric   LD PTFE   6.20
  3. Outer Conductor 1   Spiral Wrapped Silver Plated Copper tape   --
  4. Outer Conductor 2   Silver Plated Copper Tape Braid   6.80
  6. Jacket   FEP   7.90

Electrical Characteristics

  Capacitance(pF/m)   Nom.80.4
  Impedance(ohm)   50
  Velocity of Propagation(%)   83
  Max Operating Frequency(MHz)   18
  Voltage Withstanding(kVrms 60Hz/1 min.)   2.0
  Shielding Effectiveness(dB)   100

Mechanical and Environmental Characteristic

  Operating Temp.(℃)   -65 to +165
  Min Bending Radius(mm)   31.75
  Min Bending Radius Repeated(mm)   76.2
  RoHS   Compliant

Attenuation & Average Power@ 20℃ at Sea Level

  Frequency(GHz)  Attenuation(dB/m)  Power(CW)
  1.0   0.162   2100
  2.0   0.232   1450
  3.0   0.286   1200
  5.0   0.373   850
  8.0   0.478   650
  10.0   0.538   540
  12.0   0.593   490
  18.0   0.738   400
