Construction Specification

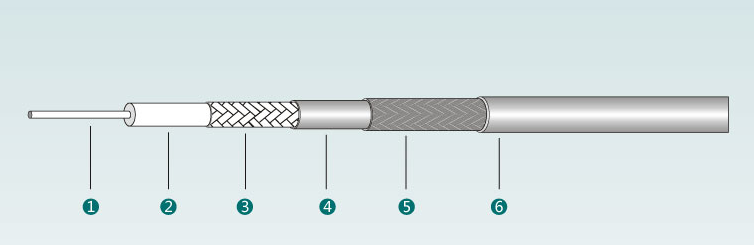

  Item  Material  Diameter(mm)
  1. Inner Conductor   Silver Plated Copper   2.44
  2. Dielectric   LD PTFE   7.24
  3. Outer Conductor 1   Silver Plated Copper Tape Braid   --
  4. Outer Conductor 2   Aluminum foil   --
  5. Outer Conductor 3   Silver Plated Copper Tape Braid   8.10
  6. Jacket   FEP   9.91

Electrical Characteristics

  Capacitance(pF/m)   Nom.87.6
  Impedance(ohm)   50
  Velocity of Propagation(%)   76
  Time Delay(ns/m)   4.3
  Max Operating Frequency(MHz)   12
  Voltage Withstanding(kVrms 60Hz/1 min.)   2.5

Mechanical and Environmental Characteristic

  Operating Temp.(℃)   -55 to +200
  Min Bending Radius(mm)   51
  RoHS   Compliant

Attenuation & Average Power@ 20℃ at Sea Level

  Frequency(GHz)  Attenuation(dB/m)  Power(CW)
  0.1   0.05   5986
  0.4   0.10   2947
  1.0   0.16   1931
  2.0   0.24   1269
  3.0   0.29   1021
  8.0   0.51   594
  10.0   0.54   523
  12.0   0.61   471
