Low loss Phase Stable Cable
Low loss Phase Stable Cable

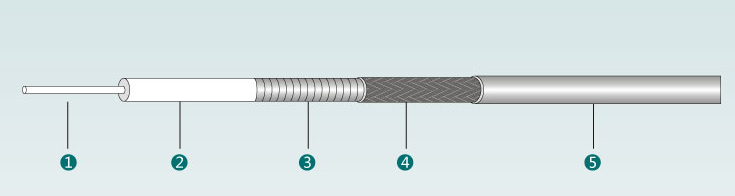

Construction Specification
| Item | Material | Diameter(mm) |
|---|---|---|
| 1. Inner Conductor | Silver Plated Copper | 0.91 |
| 2. Dielectric | LD PTFE | 2.50 |
| 3. Outer Conductor 1 | Spiral Wrapped Silver Plated Copper tape | -- |
| 4. Outer Conductor 2 | Silver Plated Copper Tape Braid | 3.15 |
| 6. Jacket | FEP | 3.55 |
Electrical Characteristics
| Capacitance(pF/m) | Nom.83 |
| Impedance(ohm) | 50 |
| Velocity of Propagation(%) | 81 |
| Time Delay(ns/m) | 4.1 |
| Max Operating Frequency(MHz) | 40 |
| Voltage Withstanding(kVrms 60Hz/1 min.) | 1.2 |
| Shielding Effectiveness(dB) | 100 |
Mechanical and Environmental Characteristic
| Operating Temp.(℃) | -55 to +200 |
| Min Bending Radius(mm) | 25 |
| Min Bending Radius Repeated(mm) | 38.1 |
| RoHS | Compliant |
Attenuation & Average Power@ 20℃ at Sea Level
| Frequency(GHz) | Attenuation(dB/m) | Power(CW) |
|---|---|---|
| 2.0 | 0.53 | 350 |
| 4.0 | 0.75 | 250 |
| 6.0 | 0.92 | 200 |
| 8.0 | 1.09 | 175 |
| 10.0 | 1.23 | 150 |
| 12.0 | 1.31 | 135 |
| 16.0 | 1.56 | 110 |
| 18.0 | 1.67 | 105 |
