Construction Specification

  Item  Material  Diameter(mm)

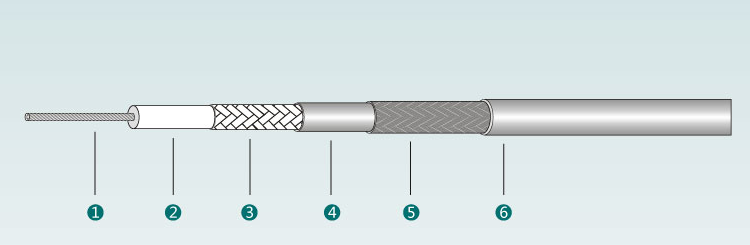

  1. Inner Conductor   Silver Plated Copper Twisted   7/0.50
  2. Dielectric   LD PTFE   4.00
  3. Outer Conductor 1   Silver Plated Copper Tape Braid   4.20
  4. Outer Conductor 2   Aluminum foil   --
  5. Outer Conductor 3   Silver Plated Copper Tape Braid   4.80
  6. Jacket   FEP   5.30

Electrical Characteristics

  Capacitance(pF/m)   Nom.86.9
  Impedance(ohm)   50
  Velocity of Propagation(%)   77
  Time Delay(ns/m)   4.4
  Max Operating Frequency(MHz)   26
  Voltage Withstanding(kVrms 60Hz/1 min.)   5.0

Mechanical and Environmental Characteristic

  Operating Temp.(℃)   -55 to +200
  Min Bending Radius(mm)   26
  Min Bending Radius Repeated(mm)   55
  RoHS   Compliant

Attenuation & Average Power@ 20℃ at Sea Level

  Frequency(GHz)  Attenuation(dB/m)  Power(CW)
  0.2   0.14   2500
  0.4   0.20   1760
  0.6   0.24   1400
  0.8   0.28   1200
  1.0   0.31   1100
  2.0   0.44   760
  5.0   0.71   470
  10.0   1.03   320
  12.0   1.13   290
  18.0   1.41   230
